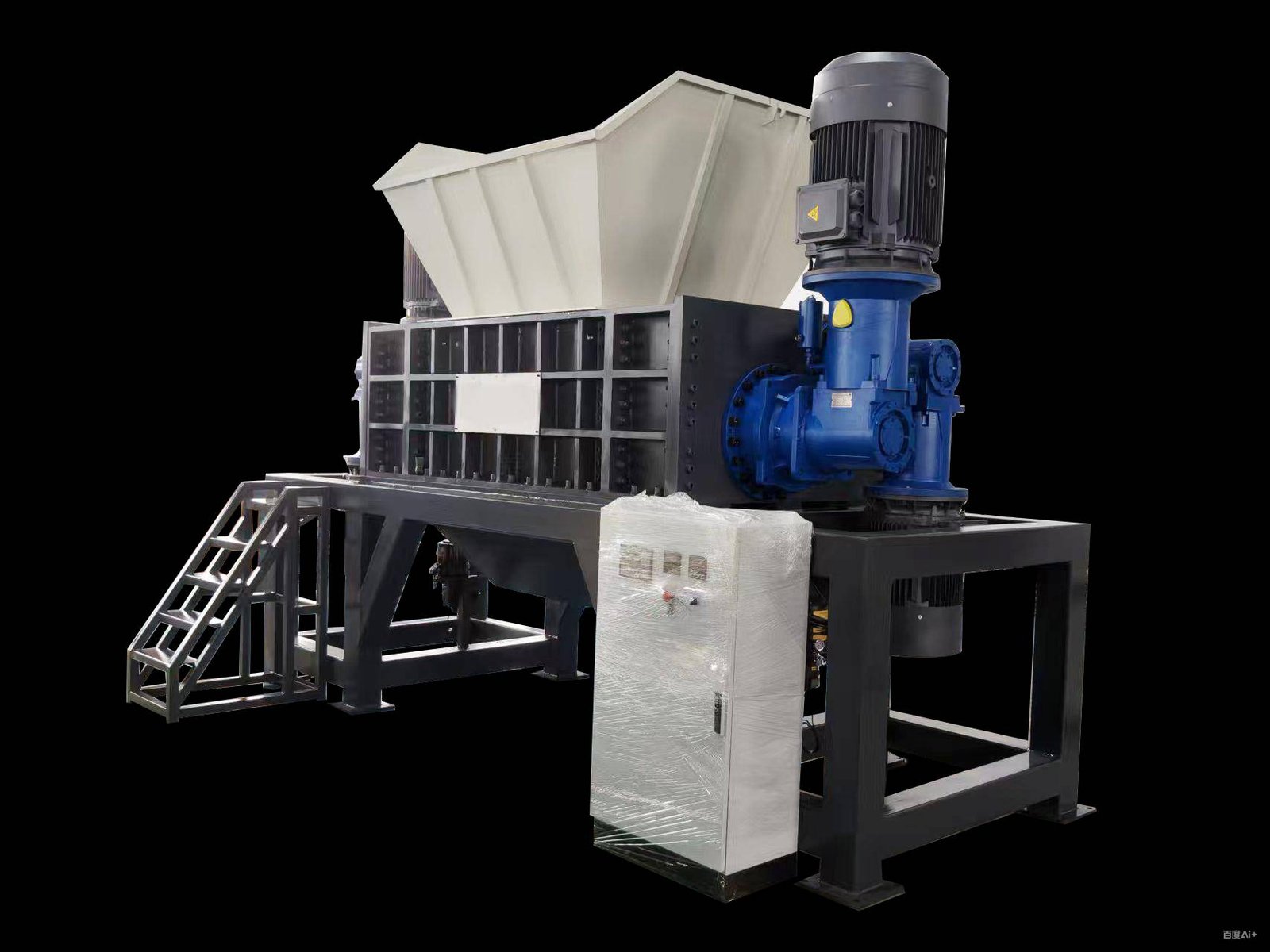

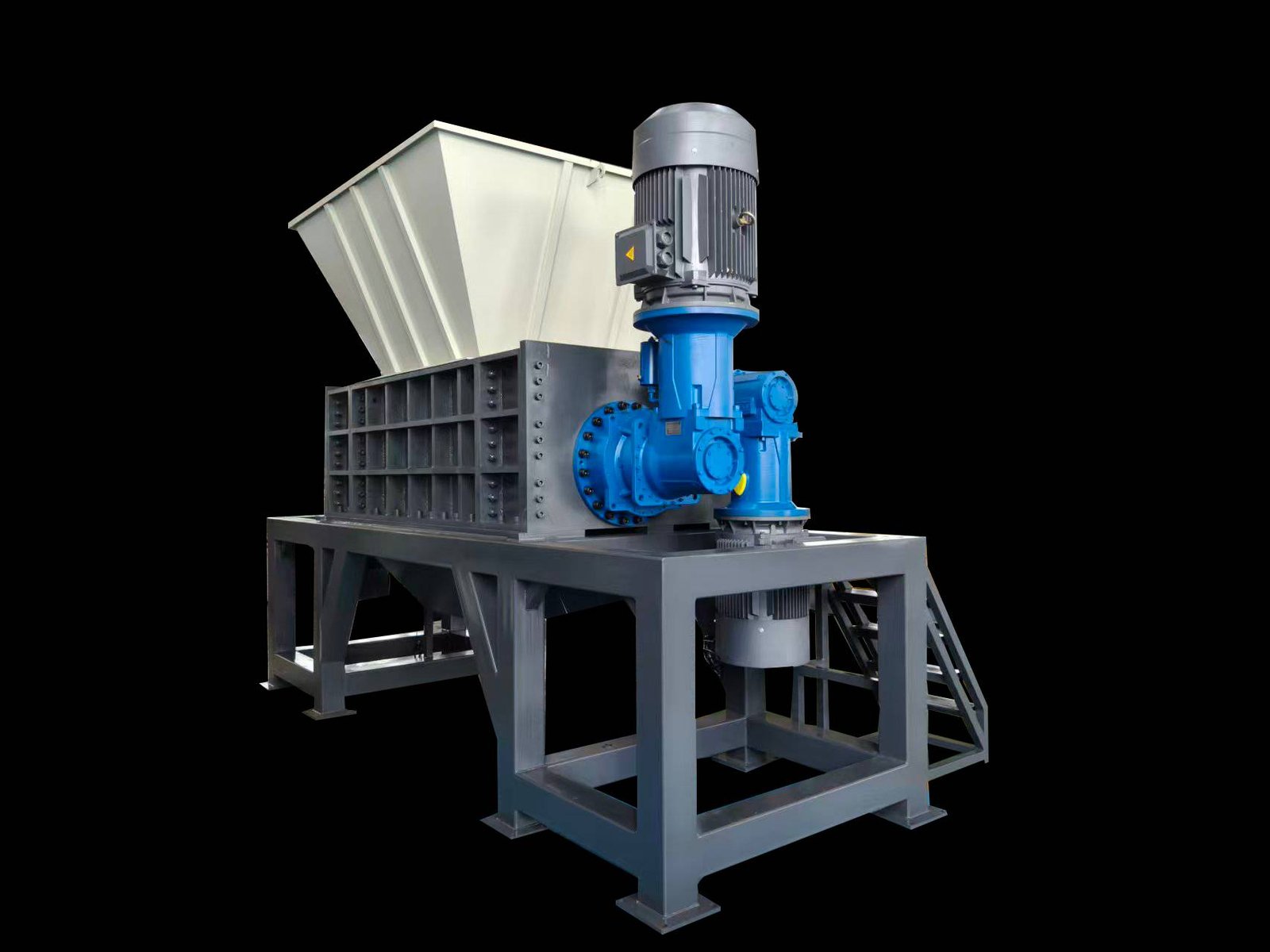

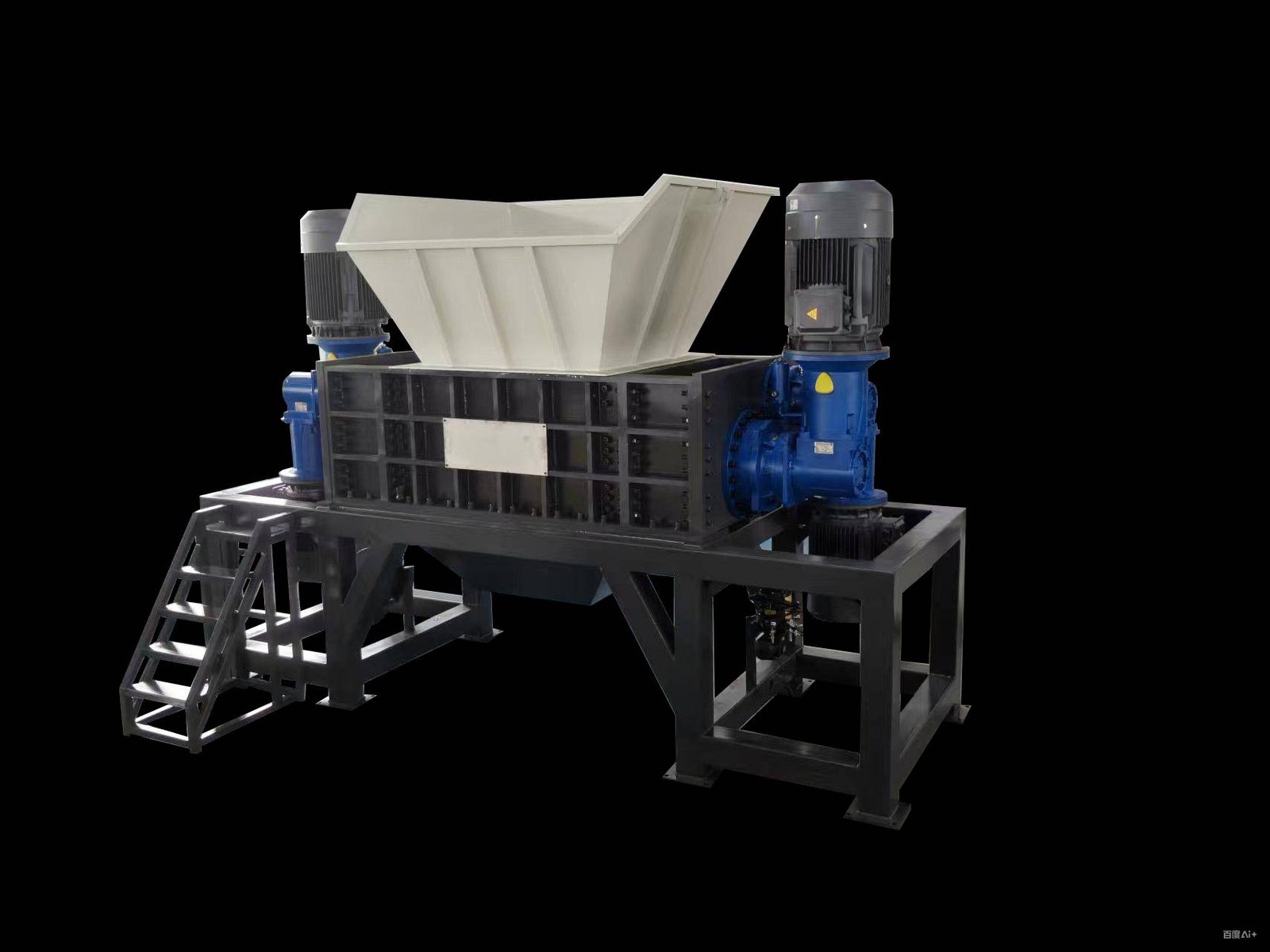

Industrial Four-Shaft Shredder for Heavy-Duty Materials
Designed for continuous shredding of mixed materials including metal scraps, e-waste, plastics, rubber and confidential waste. High-torque, low-speed four-shaft cutting delivers controlled output size, stable performance and long service life in demanding industrial environments. Key Specifications:- Models: HT4-P600 ~ HT4-P1600
- Motor Power: up to 2×55 kW
- Cutter Chamber: 600×800 – 1600×2000 mm
- Screen Size: 30 – 100 mm
Technical Parameters of Four Shaft Shredder Machine
HT series engineered for high-load industrial shredding applications.
| Model | HT4-P600 | HT4-P800 | HT4-P1000 | HT4-P1200 | HT4-P1600 |
|---|---|---|---|---|---|
| Power | 15 + 15 kW | 22 + 22 kW | 37 + 37 kW | 2×30 kW + 2×45 kW | 2×30 kW + 2×55 kW |
| Cutter chamber (A × B) | 600 × 800 | 800 × 1000 | 1000 × 1200 | 1200 × 1500 | 1600 × 2000 |

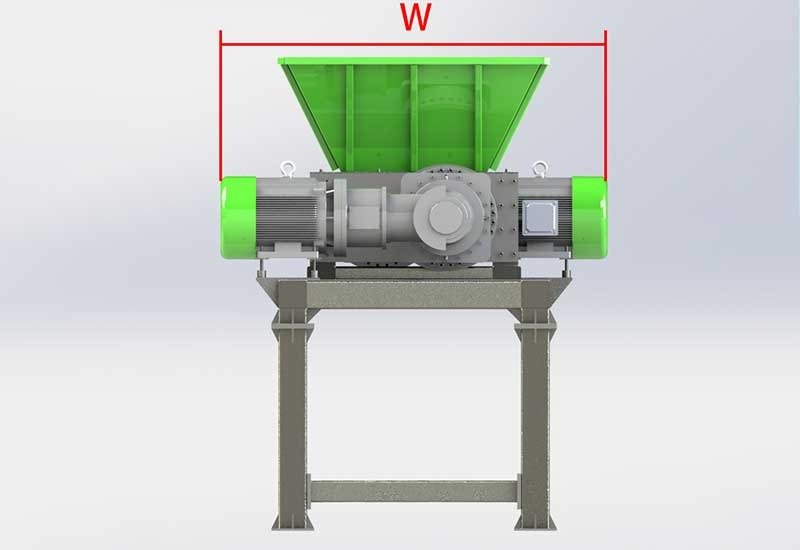

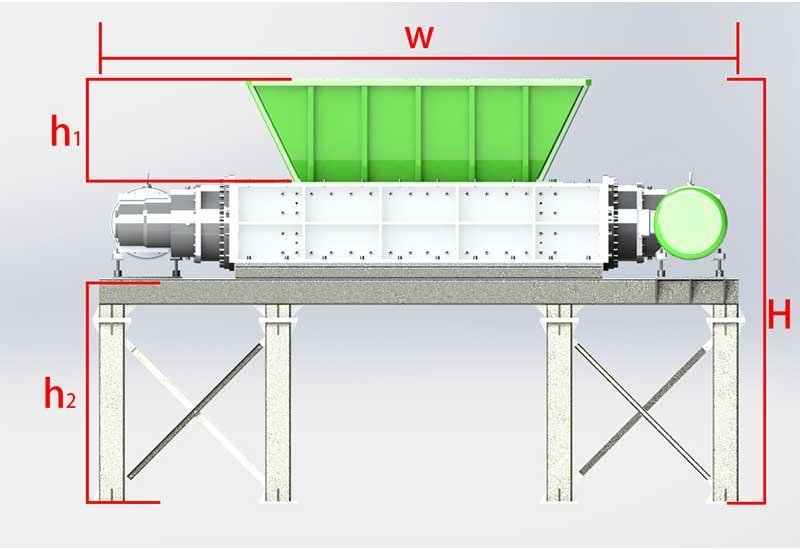

| Please contact us for specific dimensions. We design drawings tailored to the actual situation. | |||||
| Hopper size | Can be customized according to customer requirements | ||||
| Screen size | 30–100 mm | ||||
| Voltage | According to customer requirements | ||||
| Control system | PLC control system with independent Siemens touch screen | ||||
| IP Protection | IP54 | ||||
| Optional equipment | Compatible with conveyors, magnetic separators, etc. | ||||
| Noise level | Idle noise < 85 dB(A) | ||||
Industrial Shredders with Local Support Near You
Haitem works with trusted partners in India, Vietnam, the UK, Australia, and many other regions to provide faster communication, technical guidance, installation support, and after-sales service. Contact us to get connected with your nearest local representative.
FOUR SHAFT SHREDDER
The pre-sorted material is fed into two pairs of rotors rotating in opposite directions at low speed, ensuring low noise and reduced dust generation. Cutter inserts are mounted directly on the shafts for durability. The PLC system automatically reverses in case of overload or foreign objects. Serrated fixed blades ensure efficient cutting with minimal energy consumption, and the special knife design helps prevent material winding and lifting.
ADVANTAGES OF HAITEM DUAL SHAFT SHREDDER
Haitem dual shaft shredders are designed for long-term heavy-duty performance. Reinforced structure, high-torque transmission and heat-treated components ensure stable and reliable operation in demanding industrial applications.
Reinforced Heavy-Duty Structure
The shredder body is built with a reinforced heavy-duty frame capable of withstanding continuous high-torque working conditions. High-strength steel and structural support improve durability and ensure long-term stability even when processing large, dense materials.
High-Efficiency Four-Shaft Cutting
The four-shaft design uses intermeshing rotary cutters to efficiently shear, shred and pull apart different types of materials. This design minimizes jamming, improves cutting smoothness, and provides consistent particle size for downstream processing.

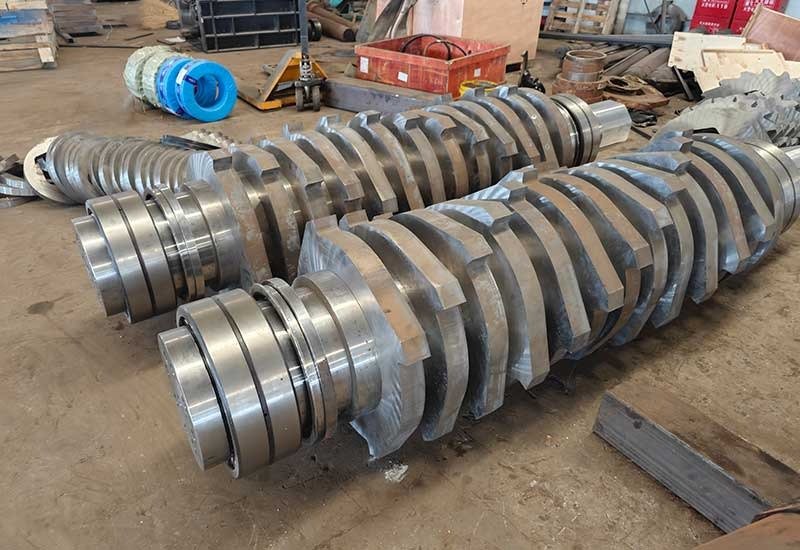

High-Strength Cutting Blades
The blades are manufactured from high-grade alloy steel and undergo quenching and precision grinding. They deliver excellent hardness, toughness and wear resistance, ensuring stable cutting performance and long service life even when processing hard or abrasive materials.

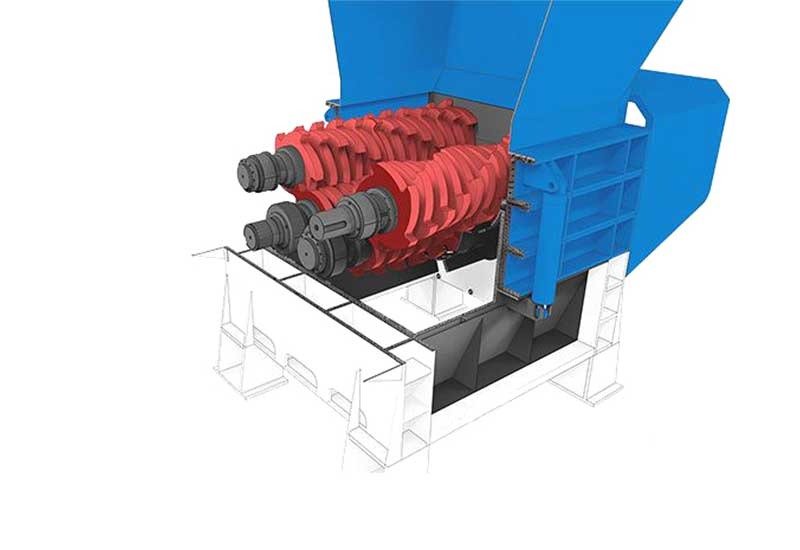

Optimized Cutting Chamber
The cutting chamber is engineered to handle materials of various sizes and shapes. Its optimized layout improves shearing efficiency and reduces empty cutting strokes. Replaceable liners protect the chamber and simplify maintenance, extending the machine’s operational life.

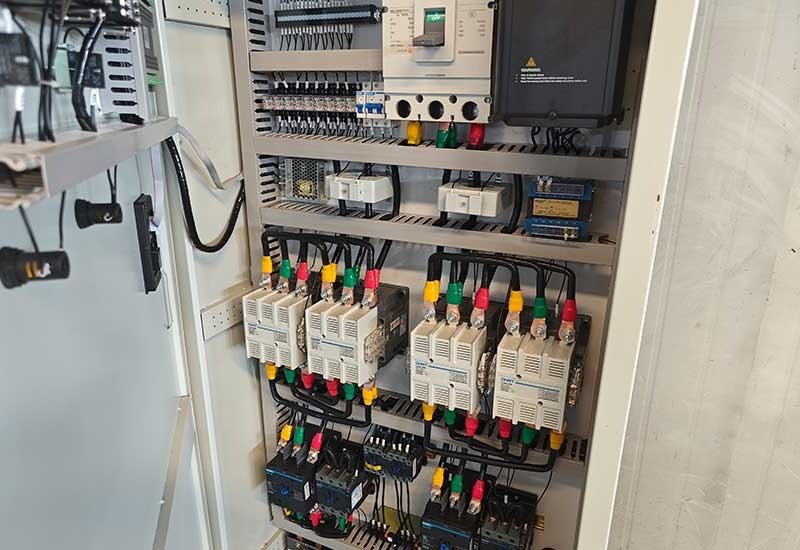

Intelligent Control System
Equipped with an advanced PLC control system, the shredder supports automatic start/stop, forward/reverse rotation, overload protection and real-time monitoring. It can be seamlessly integrated with conveyors, magnetic separators and other processing equipment to form a complete shredding and recycling line.
APPLICATIONS OF INDUSTRIAL SHREDDER MACHINE
Haitem industrial shredders are engineered to process a wide range of waste streams, helping customers reduce volume, improve recycling efficiency, and prepare materials for further treatment or disposal.
Wood Waste & Pallets
Shredding of wooden pallets, offcuts, furniture and packaging wood for volume reduction or biomass fuel.
Mixed Scrap in General
Treatment of light metal scrap and mixed industrial residues to obtain uniform, easy-to-handle fractions.
Electronic & Electrical Waste
Size reduction of e-waste such as cables, small appliances and electronic components for further separation.
Municipal & Commercial Waste
Pre-shredding of mixed household and commercial waste collected in bins to improve downstream sorting.
Waste Tires & Rubber
Primary shredding of car and truck tires for further granulation, energy recovery or recycling processes.
Industrial Shredders with Local Support Near You
Haitem works with trusted partners in India, Vietnam, the UK, Australia, and many other regions to provide faster communication, technical guidance, installation support, and after-sales service. Contact us to get connected with your nearest local representative.
Factory & Processing Workshop
Real manufacturing environment showcasing machining, assembly and quality inspection of Haitem industrial shredders.
Successful Shredder Projects
Haitem industrial shredders have been commissioned in different regions and working conditions, supporting quarrying, recycling and waste-treatment projects for our global customers.
Project in Malaysia
Integrated shredding line for local aggregates and recycling applications.
Project in Europe
Heavy-duty shredding system designed for high throughput and stable performance.
Project in Malaysia
Customized layout adapted to the customer’s existing conveying and screening system.
