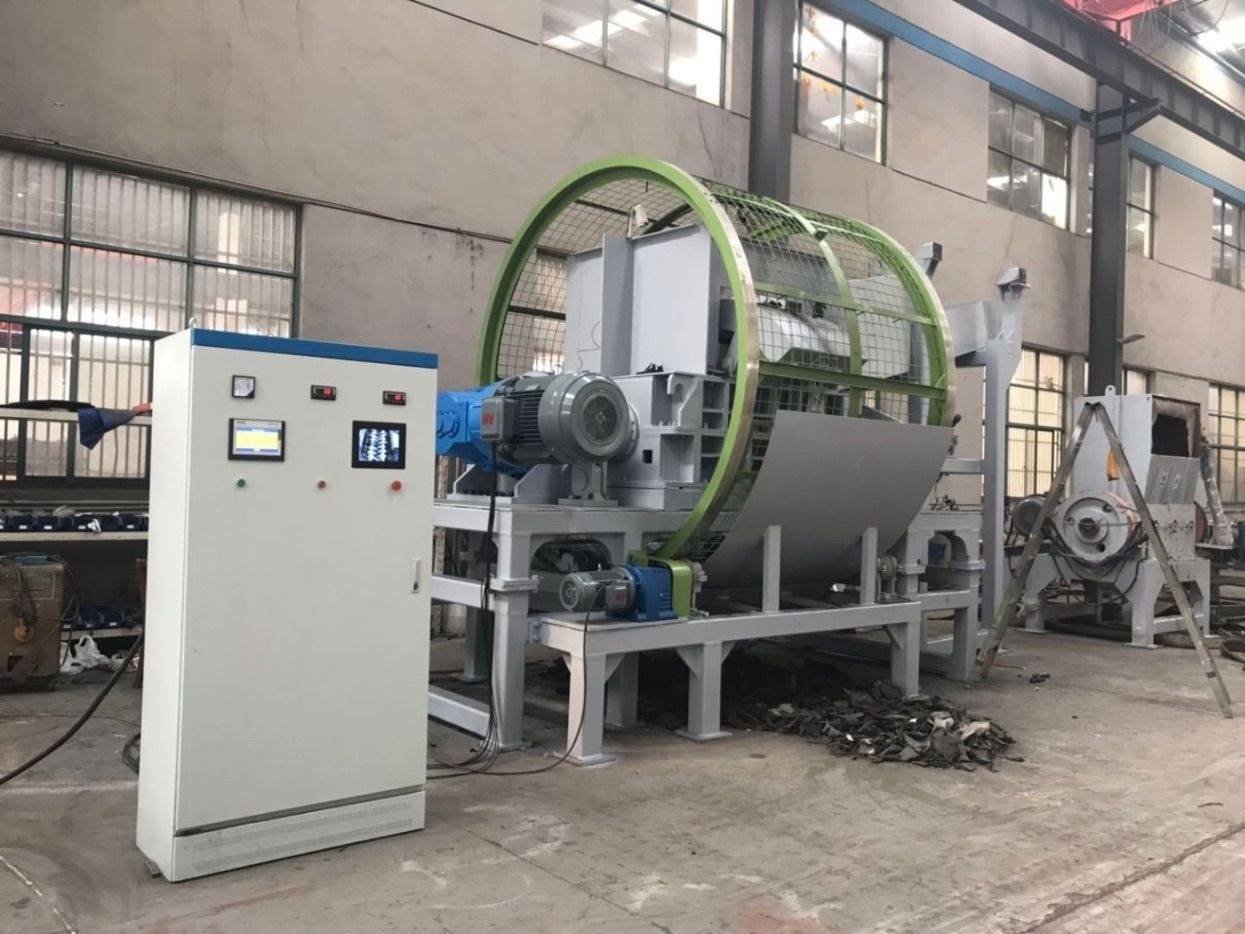

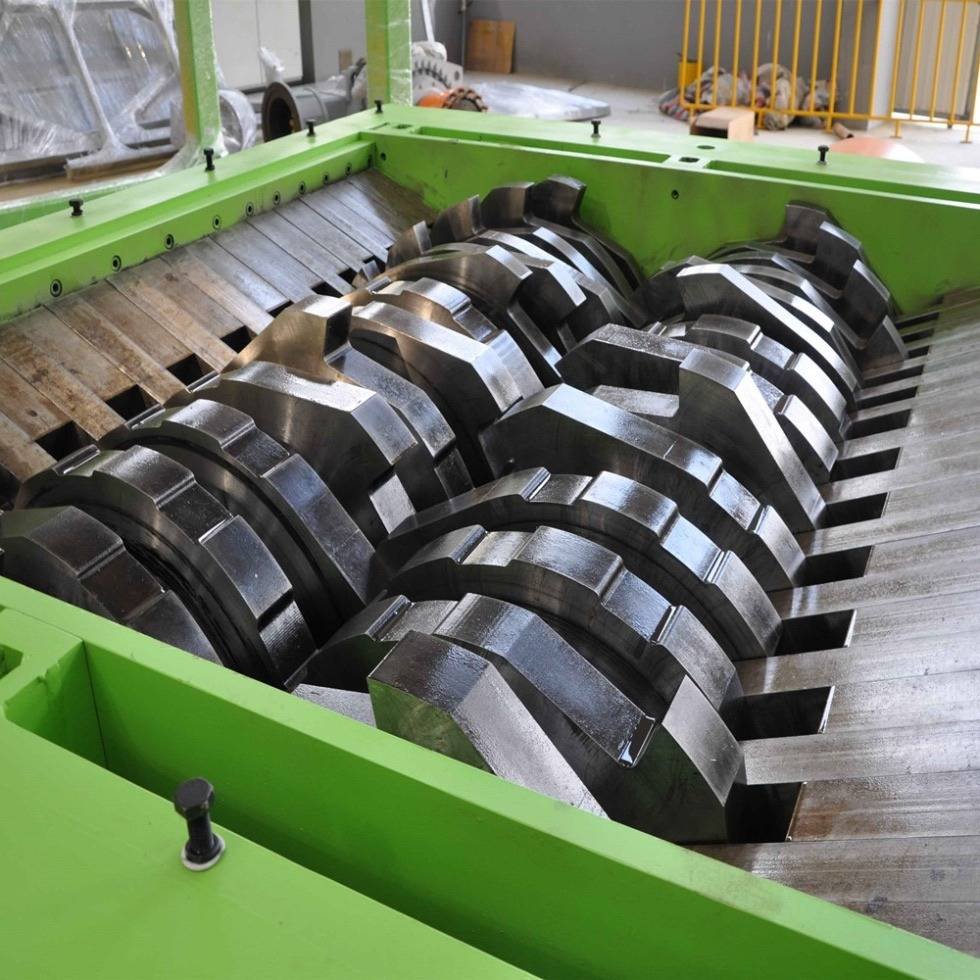

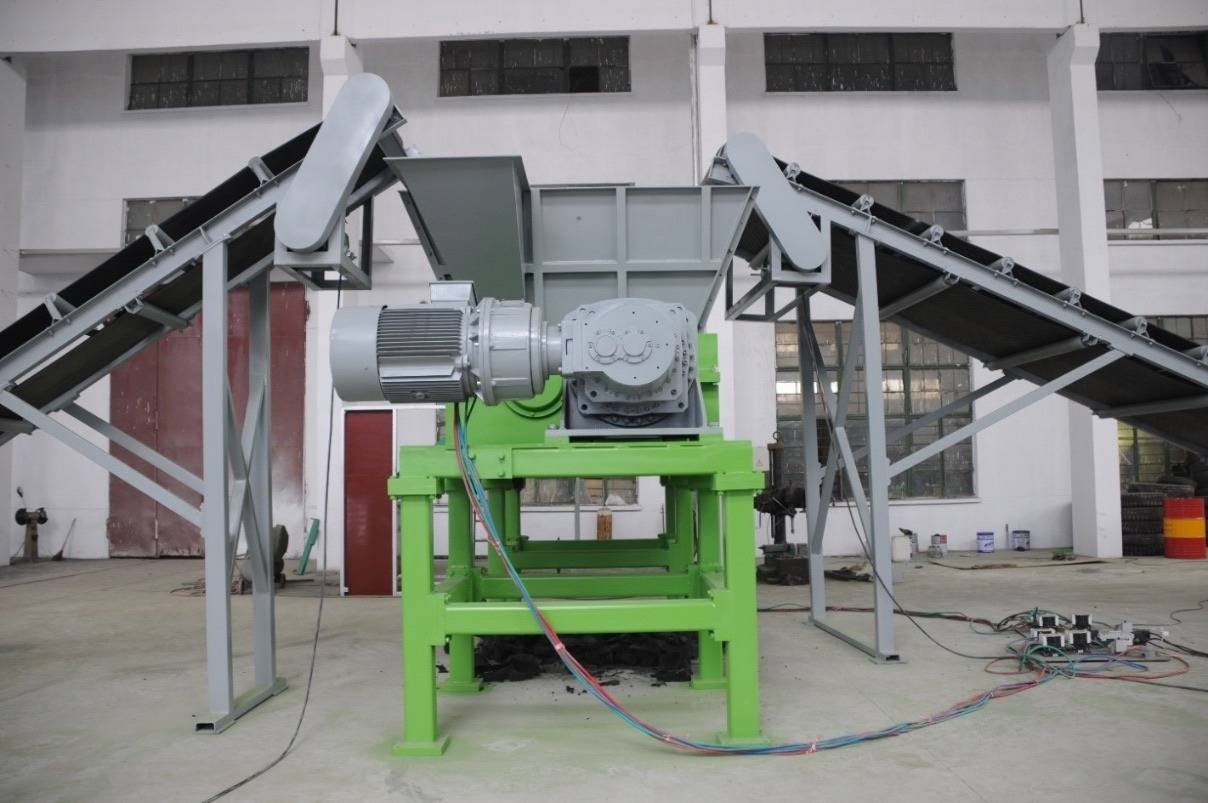

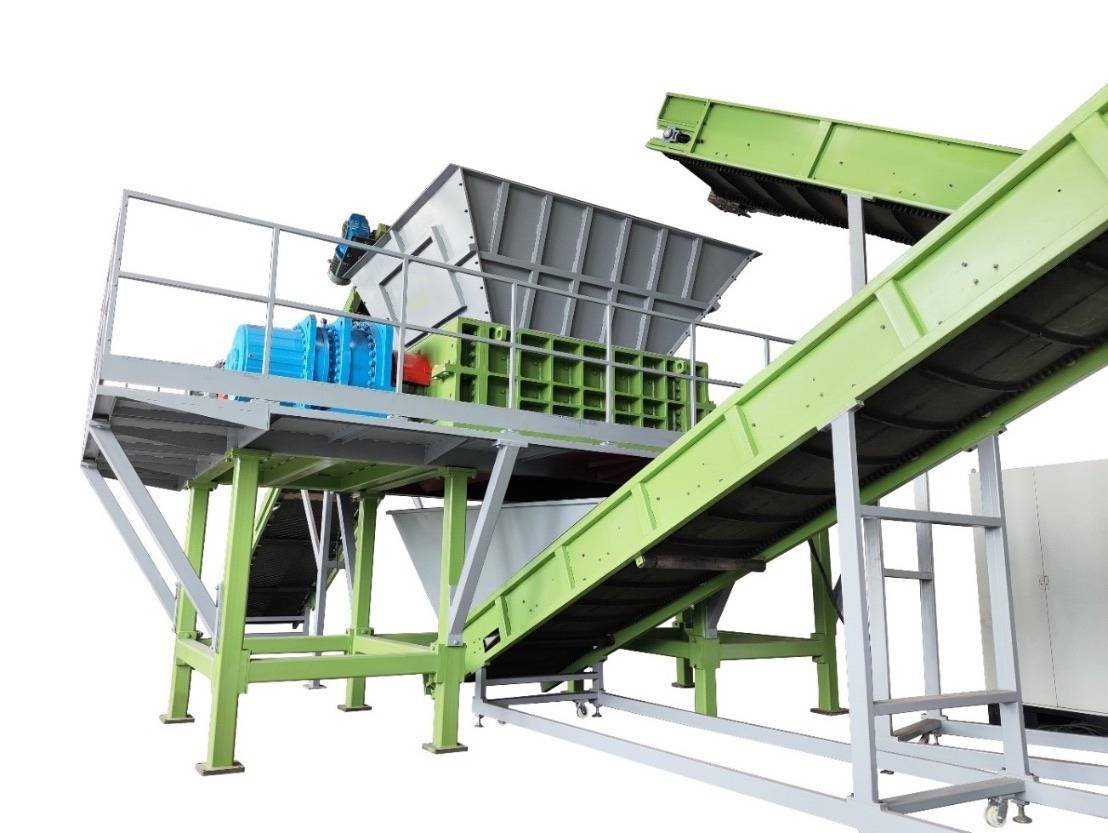

Heavy-Duty Double Shaft Shredder for Industrial Waste
Engineered for efficient shredding of plastics, rubber, tires, wood, light metals and mixed industrial waste. High-torque, low-speed cutting ensures stable performance and long service life. Key Specifications:- Models: HT-P600 ~ HT-P1800
- Blade Diameter: 230–700 mm
- Total Power: 22–320 kW
- Cutting Speed: 10–20 rpm
HT Series Double-Shaft Shredder – Model Comparison
Key performance data across the full HT series shredder range.
| Model | HT-P600 | HT-P800 | HT-P1000 | HT-P1200 | HT-P1400 | HT-P1600 | HT-P1800 |
|---|---|---|---|---|---|---|---|
| Blade diameter | 230–350 mm | 270–400 mm | 300–400 mm | 300–600 mm | 400–600 mm | 500–650 mm | 500–700 mm |
| Total power | 22–70 kW | 44–90 kW | 44–90 kW | 60–180 kW | 90–220 kW | 110–264 kW | 110–320 kW |
| Speed | 10–20 rpm | 10–20 rpm | 10–20 rpm | 10–20 rpm | 10–20 rpm | 10–20 rpm | 10–20 rpm |
| Please contact us for specific dimensions, we design drawings according to the actual situation. | |||||||
| Hopper size | Can be customized according to customer requirements | ||||||
| Voltage | According to customer requirements | ||||||
| Control system | PLC control system with independent Siemens touch screen | ||||||
| IP rating | IP Protection IP54 | ||||||
| Optional equipment | Compatible with conveyors, magnetic separators, and complete lines | ||||||
| Noise level | Idle noise < 85 dB(A) | ||||||
Industrial Shredders with Local Support Near You
Haitem works with trusted partners in India, Vietnam, the UK, Australia, and many other regions to provide faster communication, technical guidance, installation support, and after-sales service. Contact us to get connected with your nearest local representative.
ADVANTAGES OF HAITEM DUAL SHAFT SHREDDER
Haitem dual shaft shredders are engineered for continuous heavy-duty operation. Reinforced structure, high-torque transmission and heat-treated key components ensure long-term reliability and stable performance in industrial environments.

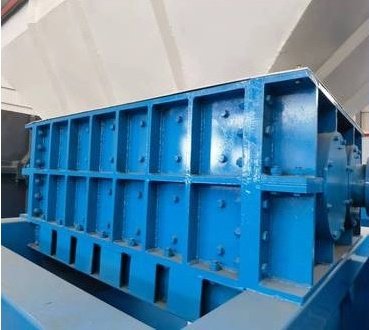

Reinforced Equipment Housing
High-strength bolt-through frame provides excellent rigidity and reduces vibration during shredding. Openable inspection sections make internal parts easy to reach, enabling faster blade replacement and simplifying routine maintenance.

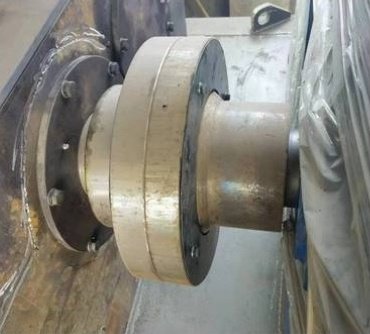

Cast-Steel Coupling
Heavy-duty cast-steel couplings ensure stable torque transmission between motor and gearbox. They offer strong impact resistance and long fatigue life, even under frequent start–stop conditions.

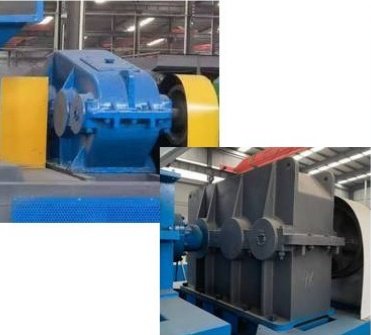

High-Torque Gearbox
Multiple gearbox configurations (such as ZQ and ZSY types) can be selected according to capacity and material. Low-speed, high-torque output ensures strong cutting force while protecting the shafts and cutting chamber from overload.

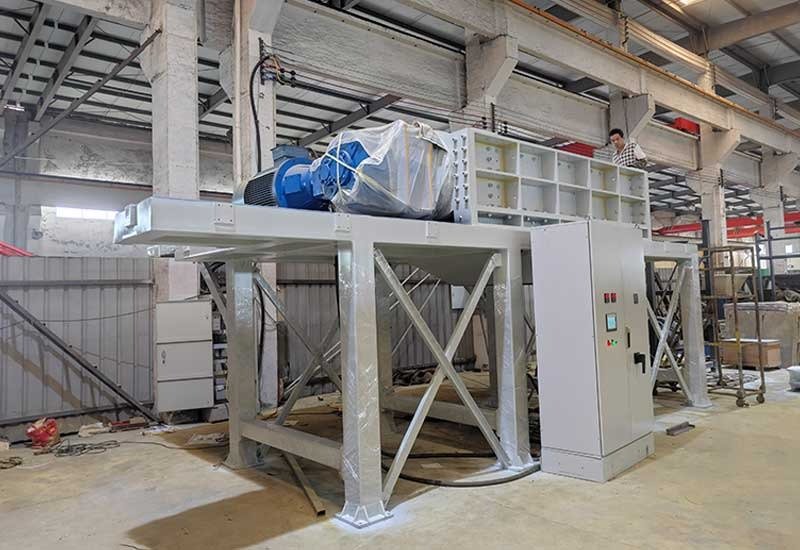

Fully Quenched Frame & Shafts
The shredder frame, rotor shafts and other key load-bearing components are quenched and tempered to increase hardness, wear resistance and fatigue strength, ensuring long-term stability under 24/7 operation.
APPLICATIONS OF INDUSTRIAL SHREDDER MACHINE
Haitem industrial shredders are engineered to process a wide range of waste streams, helping customers reduce volume, improve recycling efficiency, and prepare materials for further treatment or disposal.
Wood Waste & Pallets
Shredding of wooden pallets, offcuts, furniture and packaging wood for volume reduction or biomass fuel.
Mixed Scrap in General
Treatment of light metal scrap and mixed industrial residues to obtain uniform, easy-to-handle fractions.
Electronic & Electrical Waste
Size reduction of e-waste such as cables, small appliances and electronic components for further separation.
Municipal & Commercial Waste
Pre-shredding of mixed household and commercial waste collected in bins to improve downstream sorting.
Waste Tires & Rubber
Primary shredding of car and truck tires for further granulation, energy recovery or recycling processes.
Industrial Shredders with Local Support Near You
Haitem works with trusted partners in India, Vietnam, the UK, Australia, and many other regions to provide faster communication, technical guidance, installation support, and after-sales service. Contact us to get connected with your nearest local representative.
Factory & Processing Workshop
Real manufacturing environment showcasing machining, assembly and quality inspection of Haitem industrial shredders.
Successful Shredder Projects
Haitem industrial shredders have been commissioned in different regions and working conditions, supporting quarrying, recycling and waste-treatment projects for our global customers.
Project in Malaysia
Integrated shredding line for local aggregates and recycling applications.
Project in Europe
Heavy-duty shredding system designed for high throughput and stable performance.
Project in Malaysia
Customized layout adapted to the customer’s existing conveying and screening system.
Global Local Support
Local Support in Key Regions
We provide localized technical assistance in several regions to help customers communicate faster and receive smoother project support.
To offer faster and more efficient service, Haitem works with trusted local technical partners globally, including India, Vietnam, UK & Australia, and other regions.
Our local support teams help with early project discussions, model selection, installation guidance, and after-sales coordination — ensuring that your tire shredding project runs smoothly from start to finish.
When sending your inquiry, mention your country (e.g., India project / UK project) so we can connect you to the nearest support team.
